Inner Grooved Aluminum Tube

 Tip: Click on the image to enlarge

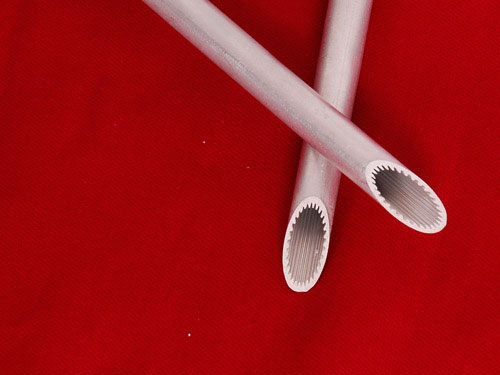

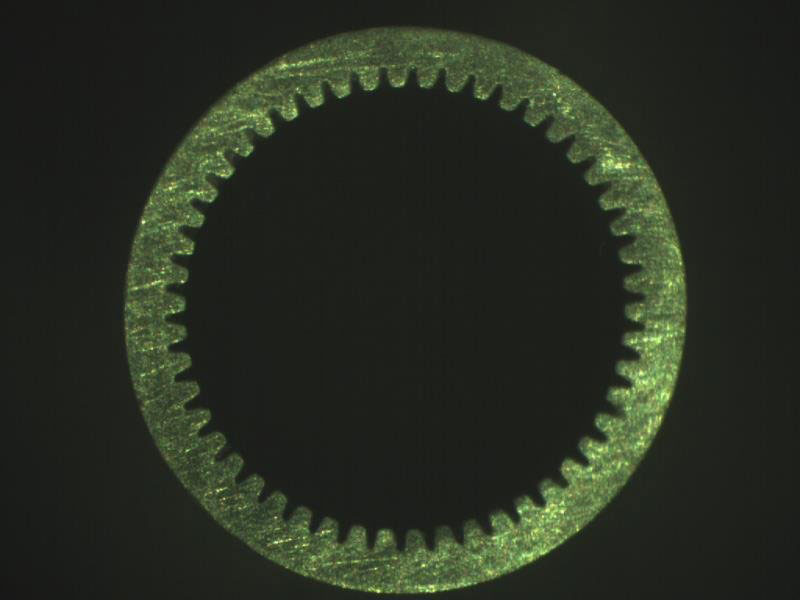

The Inner Grooved Aluminum Tube is formed with one or several spirally rising turns on the inner wall of the tube, and is a rectangular groove as seen from the cross section. The Inner Grooved Aluminum Tube is also called a dry steam tube, an inner rib tube or an inner fin tube. It is mainly used on dry evaporators in central air conditioners.

Product Name:Inner Grooved Aluminum Tube
Product Alloy : 1050, 1060, 1070, 1070A, 1100, 3003,AA003H etc.

1,The product features of Inner Grooved Aluminum Tube
1). High heat exchange efficiency
2). Low material cost
3). Easy to shape and bend
4). Light weight
5). Strong corrosion resistance
6). High recycling value
7). High precision
8). High surface quality

2, The Application range of Inner Grooved Aluminum Tube
The Inner Grooved Aluminum Tube is used for Household air conditioners, freezers, refrigerators, automotive air conditioning tubes, automotive solars, etc.

3,The product alloy of Inner Grooved Aluminum Tube
1xxx series, such as 1050, 1060, 1070, 1070A, 1100
3xxx series, such as 3003

4,The specifications of Inner Grooved Aluminum Tube
 Outer Diameter  Φ5.0 ~ Φ16 mm
Bottom Wall thickness  0.4 ~ 2.0mm
 Tooth Height  0.05 ~ 0.35 mm
 Addendum Angle  30 ~ 135 (degree)
 Helical Angle  0 ~ 25 (degree)
 Tooth Number  20 ~ 70  (tooth)
 Material  1060、3003、AA003H etc.

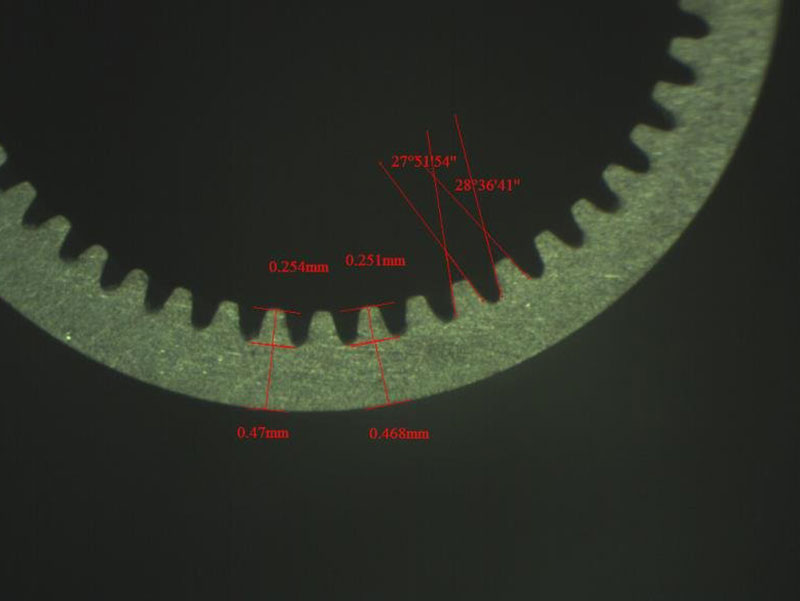

5,Common specifications for Inner Grooved Aluminum Tube

Size 7*0.47+0.05 7*0.40+0.10 7*0.47+0.25 7*0.50+0.18
Outer Diameter 7±0.05 7±0.04 7±0.06 7±0.05
Bottom Wall Thickness 0.47±0.03 0.40±0.03 0.47±0.06 0.50±0.03
Tooth Height 0.05±0.01 0.10±0.02 0.25±0.03 0.18±0.02
Addendum Angle 130°±5° 130°±5° 28°±5° 45°±10°
Helical Angle 6°±2° 10°±2° 18°±2° 18°±5°
G per Meter 29±2 26±2 35±2 33±1
Tooth Number 40 40 50 48
