The Evaporator Material (D-Type Condenser header aluminium pipe ) is also one of the important components in the air conditioning system, and the D-Type Condenser header pipe evaporator can reduce energy consumption.
Because of the evaporator D-Type pipe structure increases the heat exchange area, the heat exchange area increases, the evaporation temperature is increased, the cooling capacity is increased, the cooling capacity coefficient is increased, and the energy consumption is reduced.
1, The Type of Evaporator Material (D-Type Condenser header aluminium pipe ) :
1) Punched Condenser Header Pipe
Cladding type: single Cladding material, double Cladding material
Material Temper: H14;
Cladding rate: 10±2
Wall thickness: 1-2.5mm
2) Condenser header pipe D-type
Cladding type: single Cladding material, double Cladding material
Core layer: 3003, 3305
Wall thickness: 1-2.5mm
2, The Introduction of Evaporator Material (D-Type Condenser header aluminium pipe )
Cladding type: single Cladding material, double Cladding material
Cladding layer: 4045, 4343, 7072 anti-corrosion layers
Material Temper: H14,H18,or according to customer requirements;
Cladding rate: 10±2 or according to customer requirements
Core layer: 3003, 3305
Production Process: high frequency welding, cold drawing
Wall thickness: 1-2.5mm
Appearance: can be customized according to customer requirements.
3,The Characteristics of Evaporator Material (D-Type Condenser header aluminium pipe )
1). light weight
2). easy welding
3). Good corrosion resistance
4). Good Voltage Resistance
5). Compliance with standard ROHS
6). High recycling value
7). Small deviation range
8). High surface quality
4, The Usage of Evaporator Material (D-Type Condenser header aluminium pipe ) :
Evaporator Material (D-Type Condenser header pipe) are mainly used in automotive evaporators, heaters, condensers, parallel flow condensers, new energy vehicles, etc.
5, The tech requirements and common dimensions of the Evaporator Material (D-Type Condenser header aluminium pipe ) are shown below:
1).The cutting section burr does not exceed 0.1mm,and the inner wall weld line height does not exceed 0.2mm
2).Cutting section 90°+/-2
3).The inner and outer surface of the pipe should be clean and free of foreign matter such as oil,dust and aluminum chips;no defects such as pressure pits,bumps,and scratches are allowed.
4).The length and material of the pipe are customized according to customer’s requirements

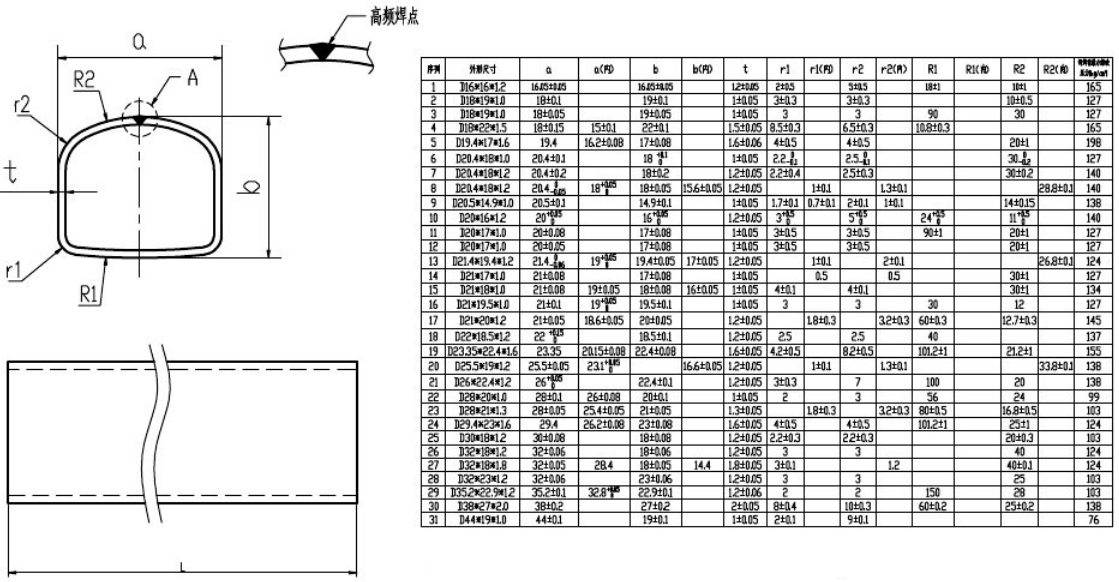

5).The existing specifications of our company are shown as below table (the burst pressure in the table is defined by the bursting pressure of the high-frequency welded pipe before drawing)
